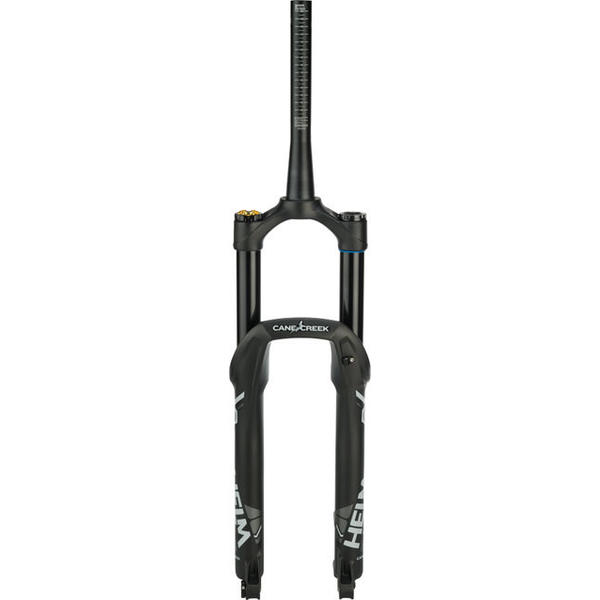

Cane Creek Helm Air 27.5

Cane Creek Helm Air 27.5
This item is currently not available.

Details

Introducing the Cane Creek Helm, a 7-way adjustable suspension fork optimized for 140mm to 170mm of travel. Born in the mountains of Western North Carolina, Helm is designed to conquer aggressive trail, enduro racing, and anything in between. By isolating each damping and air spring adjustment, the Helm has the ability to be tuned for all types of terrain and riding styles and gives the rider ultimate control of their suspension set-up.

WEIGHT
- 2070 grams
DAMPING
- High Speed Compression, Low Speed Compression, Low Speed Rebound
ADJUSTMENTS
- 7-way adjustable suspension fork
- High speed compression
- Low speed compression
- Low speed rebound
- Air volume adjust (8-position Internal indexed system)
- Independent positive air spring
- Independent negative air spring
- Indexed travel adjust system
SPRING
- High volume positive and negative air springs
STANCHION DIAMETER
- 35mm
TRAVEL
- Positioned at 150mm, 160mm, or 170mm from factory Optimized for 140 - 170mm of travel
TRAVEL ADJUSTMENTS
- Internal, 10mm Increments (170mm down to 100mm) 2 Travel spacers included
AXLE / SPACING / OFFSET
- "D-Loc" 15mm thru axle system / 15mm x 110 BOOST spacing / 44mm

Specs

Travel 160mm
Wheel Size 27.5
Brake Compatibility Disc
Steerer Diameter/Material Tapered/Alloy
Stanchion Diameter/Materials 35mm
Dropouts Thru-axle
Spring High volume positive and negative air
Damper HSC, LSC, LSR
Adjustments High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping , External Travel Adjustment
Weight 2070 g

* Subject to change without notice.

Part Numbers

Option UPC MPN
110 x 15mm / Black / 44mm / 160mm / 27.5-inch 840226141619 BAG0345K
