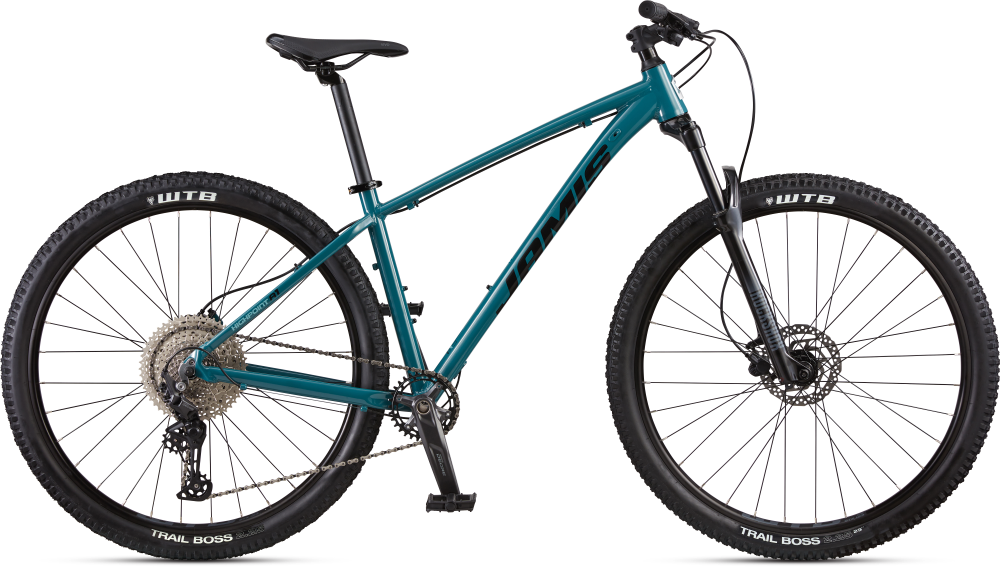

Jamis Highpoint A1

Jamis Highpoint A1
$1,249.99
Color:
Riptide
Size:
21-inch
Please select options
Sorry, this item is currently not available.

Details

TRUE ALL-AROUNDER

Designed with geometry like our Komodo, the Highpoint is ready to tackle all aspects of trail riding. With a 5" travel fork with thru-axle and tubeless rims, the Highpoint performs as a true all-arounder. It's a fact: larger wheels roll over obstacles more easily than smaller wheels. Stuff like rocks, logs, and stutter bumps. In other words, they'll roll easier and faster on the trails you ride.

FRAME MATERIALS
Highpoint features lightweight and strong triple-butted 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.

- 6061 triple-butted aluminum
- Rock Shox Judy Silver TK 29", Solo Air compression, external rebound, Turn Key lockout, 120mm travel
- WTB STX i23 TCS tubeless 29" rims, 32H, alloy disc hubs
- Shimano Deore Shadow Plus rear, 11-speed
- Shimano Deore, 32T Crank
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- Selle Royal Vivo Saddle

Geometry

Geometry Chart:
TT EFFECTIVE
Inch / mm
HT ANGLE

ST ANGLECHAINSTAY
Inch / mm
WHEELBASE
Inch / mm
BB DROP
Inch / mm
HEADTUBE
Inch / mm
STANDOVER
Inch / mm
STACK
Inch / mm
REACH
Inch / mm
S/15.5" 23.0 / 585 68° 74° 17.3 / 440 44 / 1126 2.4 / 60 3.5 / 90 30.0 / 763 25.0 / 635 15.9 / 403
M/17" 24.0 / 610 68° 74° 17.3 / 440 45 / 1152 2.4 / 60 3.9 / 100 31.5 / 799 25.4 / 644 16.7 / 425
L/19" 25.0 / 635 68° 74° 17.3 / 440 46 / 1178 2.4 / 60 4.3 / 110 32.9 / 836 25.7 / 653 17.6 / 447
XL/21" 26.0 / 660 68° 74° 17.3 / 440 47 / 1204 2.4 / 60 4.7 / 120 34.2 / 868 26.1 / 663 18.5 / 470

Specs

Frame 6061triple-butted aluminum main tubes, 1.5 – 1 1/8" tapered head tube, over-sized stays, replaceable derailleur hanger
Fork Rock Shox Judy Silver TK 29", Solo Air compression, external rebound, Turn Key lockout, 30mm steel stanchions, magnesium lowers, 15x110mm axle, 120mm travel, 51mm rake
Wheels WTB STX i23 TCS tubeless 29" rims, 32H, alloy disc hubs, 14G black electroplated spokes
Tires WTB Trailboss, 29 x 2.25"
Bottom Bracket Shimano BSA
Crankset Shimano Deore, 32T
Shifters Shimano Deore, 1×11-speed
Cassette/Freewheel Shimano HG5100, 11-speed, 11-51T
Chain KMC X11, 11-speed
Brakes Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Handlebars Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Tape/Grips Kraton
Stem Jamis XC alloy threadless, 31.8 x 60mm
Headset Zero-stack internal cup, 15mm cone spacer
Seatpost Jamis alloy micro-adjust, 31.6 x 400mm
Saddle Selle Royal Vivo
Pedals MTB platform, hi-impact resin

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Riptide / 21-inch 845436085241 03-3715BL 210000046950
